Chevrolet Captiva Service & Repair Manual: Brake Fluid Level Warning Indicator Switch R&R

Chevrolet Captiva Service & Repair Manual / Brakes / Brake Fluid Level Warning Indicator Switch R&R

Ensure the retaining tabs on the brake fluid level indicator switch are fully engaged in the master cylinder reservoir.
1. Remove the underhood electrical center.
2. Disconnect the brake fluid level indicator switch electrical connector.

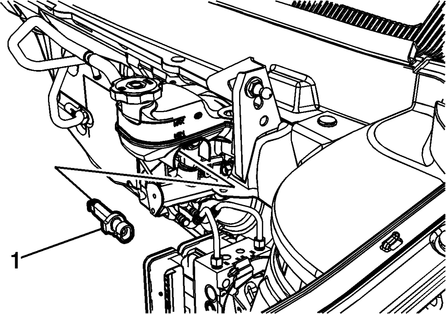

3. While compressing the retaining tabs on the inboard side of the brake fluid level indicator switch (1), carefully remove the switch from the brake master cylinder reservoir, Fig. 1.
4. Reverse procedure to install.

Fig. 1
