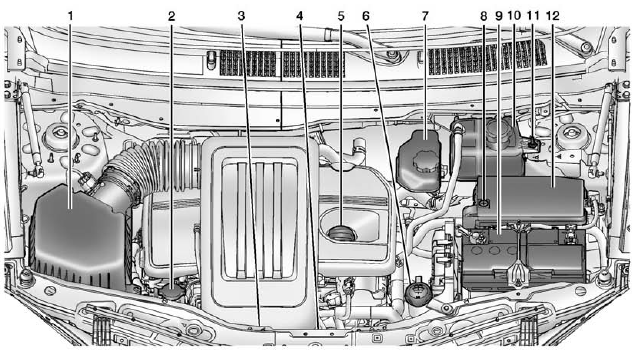

2.4L L4 Engine

Engine Air Cleaner/Filter on page 10-12.
Power Steering Fluid Reservoir.
See Power Steering Fluid on page 10-20.
Engine Cooling Fan (Out of View). See Cooling System on page 10-13.
Engine Oil Dipstick (Out of View). See "Checking Engine Oil" under Engine Oil on page 10-8.
Engine Oil Fill Cap. See "When to Add Engine Oil" under Engine Oil on page 10-8.
Windshield Washer Fluid Reservoir. See "Adding Washer Fluid" under Washer Fluid on page 10-20
Brake Fluid Reservoir. See Brakes on page 10-21.
Remote Positive (+) Terminal.
See Jump Starting on page 10-66.
Battery on page 10-23.
Engine Coolant Surge Tank and Pressure Cap. See "Checking Coolant" under Engine Coolant on page 10-14.
Remote Negative (-) Terminal.
See Jump Starting on page 10-66.
Engine Compartment Fuse Block on page 10-31.

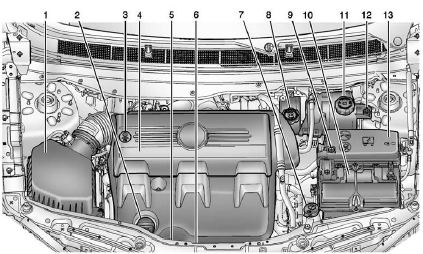

3.0L V6 Engine

Engine Air Cleaner/Filter on page 10-12.
Engine Oil Fill Cap (Out of View). See "When to Add Engine Oil" under Engine Oil on page 10-8.
Power Steering Fluid Reservoir (Out of View). See Power Steering Fluid on page 10-20.
Engine Cover. See Engine Cover on page 10-7.
Engine Oil Dipstick (Out of View). See "Checking Engine Oil" under Engine Oil on page 10-8.
Engine Cooling Fans (Out of View). See Cooling System on page 10-13.
Windshield Washer Fluid Reservoir. See "Adding Washer Fluid" under Washer Fluid on page 10-20.
Brake Fluid Reservoir. See Brakes on page 10-21.
Remote Positive (+) Terminal.
See Jump Starting on page 10-66.
Battery on page 10-23.
Engine Coolant Surge Tank.
See "Checking Coolant" under Engine Coolant on page 10-14.
Remote Negative (-) Terminal.
See Jump Starting on page 10-66.
Engine Compartment Fuse Block on page 10-31.

Hood

To open the hood: Pull the handle with this symbol. It is located below the instrument panel to the left of the steering wheel. Go to the front of the vehicle and lift up o ...

Engine Cover

Engine Cover (3.0L V6) Oil Fill Cap Engine Cover Bolt Engine Cover To remove: Remove the oil fill cap (1). Remove the engine cover bolt (2). Raise the engine cover (3) to re ...
