Chevrolet Captiva Owners Manual: Instrument Panel Fuse Block

The instrument panel fuse block is on the passenger side of the lower console.

Instrument Panel Fuse Block

Pull the latch of the fuse box cover straight back to access the fuses.

Instrument Panel Fuse Block

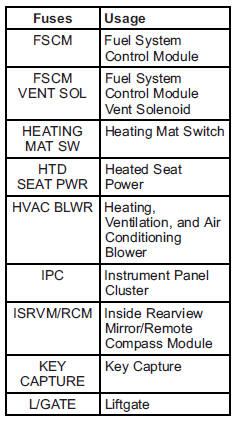

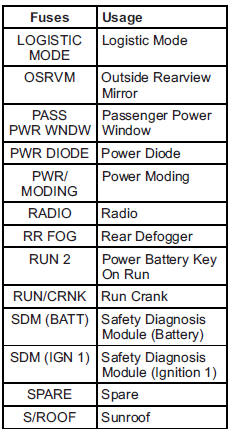

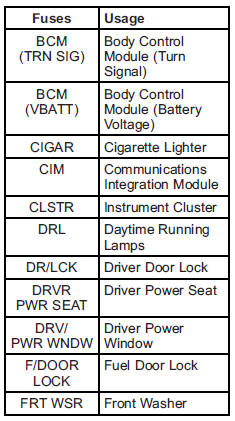

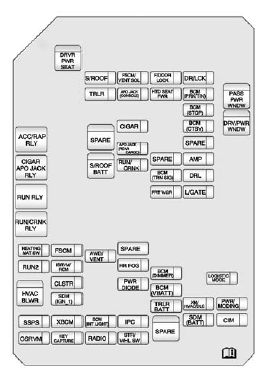

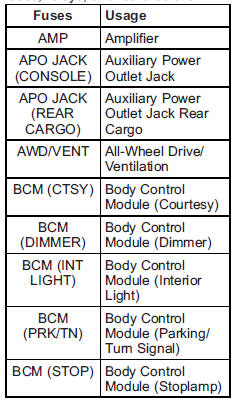

The vehicle may not have all of the fuses, relays, and features shown.

Instrument Panel Fuse Block

Instrument Panel Fuse Block

Instrument Panel Fuse Block

Instrument Panel Fuse Block

Instrument Panel Fuse Block

Instrument Panel Fuse Block
