Chevrolet Captiva Service & Repair Manual / Body & Frame / Fender

Removal

1.	Remove front bumper as outlined in Front Bumper.

2.	Remove fender wheel opening molding.

3.	Remove wheelhouse liner as outlined in Fender Liner.

4.	Remove rocker panel molding as outlined in Rocker Molding.

5.	Remove fender center molding.

6.	Remove nine fender bolts, Fig. 1.

7.	Remove fender, Fig. 1.

Installation

Reverse procedure to install. Torque fender bolts to 80 inch lbs.

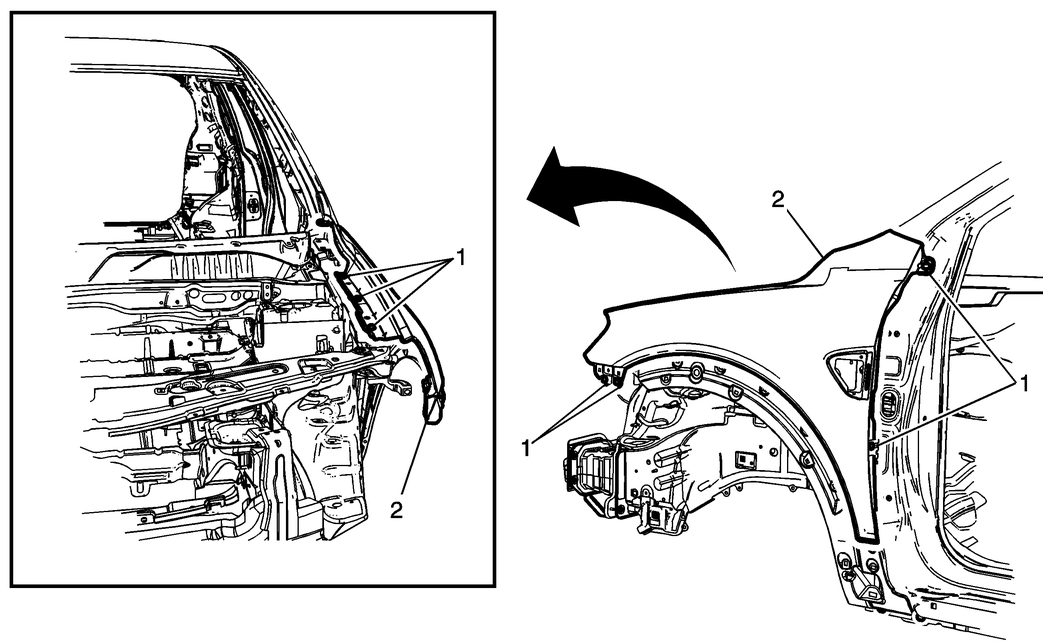

Fig. 1 Fender removal
