Chevrolet Captiva Service & Repair Manual: Fender Liner

Removal

1.	Remove tire and wheel assembly.

2.	Remove six fender liner screws, Fig. 1.

3.	Remove four fender liner retainers, Fig. 1.

4.	Remove fender liner, Fig. 1.

Installation

Reverse procedure to install. Torque screws to 22 inch lbs.

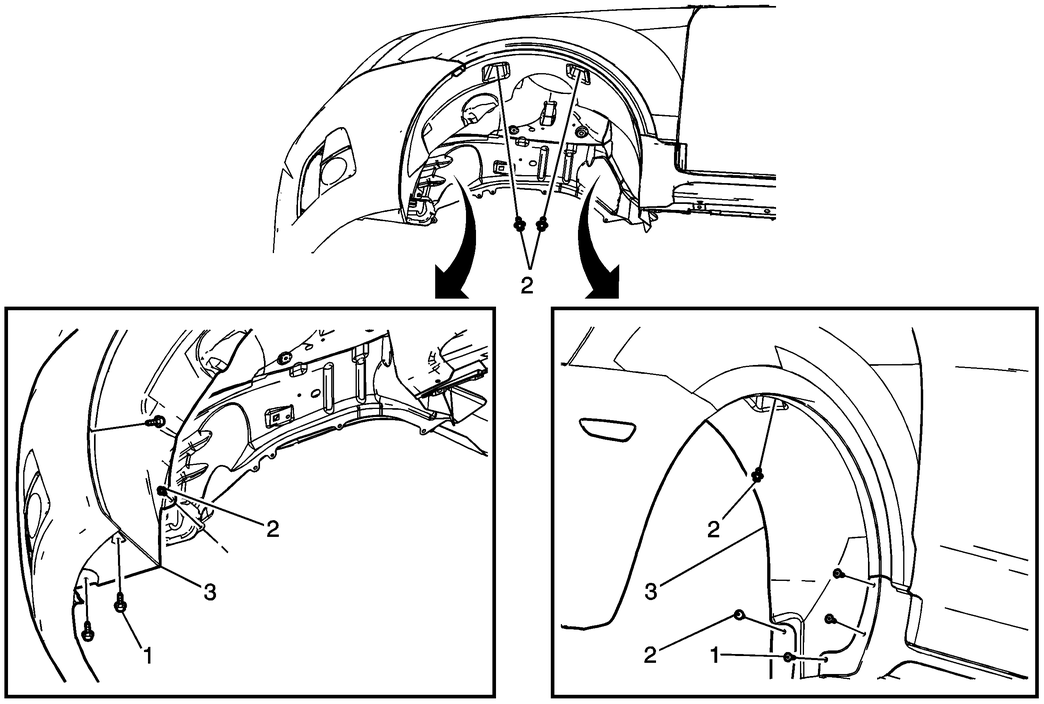

Fig. 1 Fender liner removal
