Chevrolet Captiva Service & Repair Manual: Front Bumper Reinforcement

Removal

1.	Remove front bumper as outlined in Front Bumper.

2.	Remove hood latch bracket.

3.	Remove eight front bumper impact bar bolts, Fig. 1.

4.	Remove front bumper reinforcement.

5.	Disconnect electrical connectors and harnesses as required.

Installation

Reverse procedure to install. Torque reinforcement bolts to 22 ft. lbs.

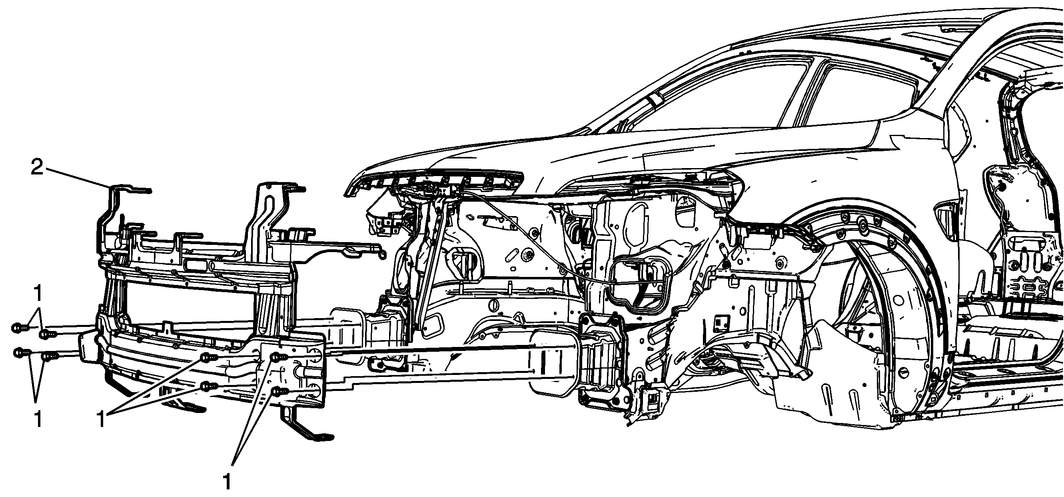

Fig. 1 Front bumper reinforcement removal
