Chevrolet Captiva Service & Repair Manual: Front Door Handle

Removal

1. Remove front side door water deflector.
2. Disconnect electrical connector.
3. Remove access hole plug located on inside opening of door that conceals screw for latch cylinder clamp.
4. Pull and hold door handle in open position.
5. While holding door handle, unscrew latch cylinder clamp screw until it comes to a hard stop.
6. Release handle, by now handle should stay in open position, Fig. 1.
7. Remove lock cylinder, gently pull it straight out.
8. Remove outside door handle by sliding rearwards and then out in a swinging motion, Fig. 1.

Installation

Reverse procedure to install.

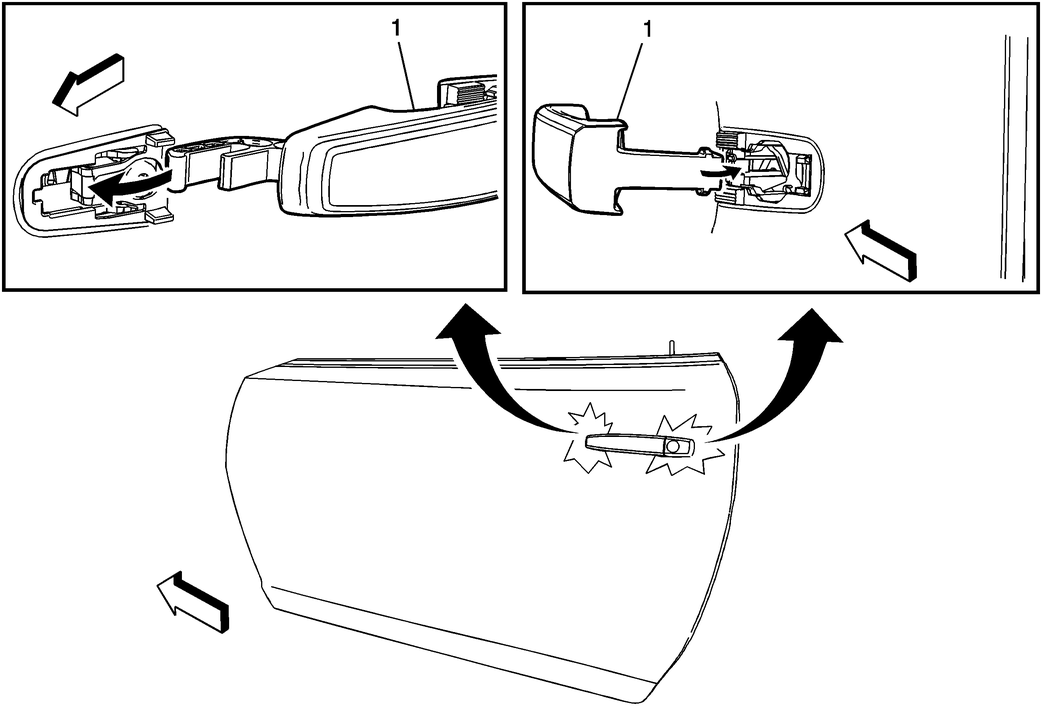

Fig. 1 Door handle removal
