Chevrolet Captiva Service & Repair Manual: Front Sub-Frame
Removal
| Do not allow radiator to swing
after removing front suspension crossmember. Upper portion of radiator should
be fixed using strings. |
| 1. |
Install engine support fixture. |
| 2. |
Raise and suitably support vehicle
and remove wheels. |
| 3. |
Remove engine shield from underbody
of vehicle, Fig. 1. |
| 4. |
Remove front control arm ball joint
to knuckle nut and pin, Fig. 2. |
| 5. |
Remove front exhaust pipe assembly. |
| 6. |
On 4WD models, remove propeller
shaft. |
| 7. |
On all models, remove outer
tie rod to knuckle nut. |
| 8. |
Remove stabilizer shaft link to strut
nut, Fig. 3. |
| 9. |
Remove power steering gear to front
suspension crossmember bolts. |
| 10. |
Support front suspension crossmember
with a jack stand. |
| 11. |
Remove front suspension crossmember
to transmission rear mount bracket bolts, Fig. 4. |
| 12. |
Remove transmission front mount to
front suspension crossmember bolt and remove mount, Fig.
5. |
| 13. |
Remove front suspension crossmember
to body bolts, Fig. 6. |
| 14. |
Remove front suspension crossmember
support bracket to body bolts, Fig. 7. |
| 15. |
Lower front suspension crossmember
slowly with care. Rotate stabilizer shaft and rod properly to have
enough space during lowering cradle. |
| 16. |
Remove stabilizer shaft clamp to front
suspension crossmember bolts, Fig. 8. |
| 17. |
Remove control arm to front suspension
crossmember bolts and nuts. |
|
Installation
| 1. |
Install front control arm to front
suspension crossmember bolts and nuts, Fig. 9. |
| 2. |
Install stabilizer shaft clamp to front
suspension crossmember bolts and torque to 37 ft. lbs. |
| 3. |
Raise front suspension crossmember
slowly with care using a jack stand. Rotate stabilizer shaft and
tie rod properly to settle front suspension crossmember in correct
position. |
| 4. |
Install front suspension crossmember
support bracket and front suspension crossmember to body bolts. |
| 5. |
Torque front suspension crossmember
to body bolts to 114 ft. lbs. |
| 6. |
Torque front suspension crossmember
support bracket to body bolts to 37 ft. lbs. |
| 7. |
Install front suspension crossmember
to transmission rear mount bolts and torque to 81 ft. lbs. |
| 8. |
Install transmission front mount and
install front suspension crossmember to transmission front mount
bolt. |
| 9. |
Torque transmission front mount
to transmission bolts to 37 ft. lbs. |
| 10. |
Torque front suspension crossmember
to transmission front mount bolt to 81 ft. lbs. |
| 11. |
Install power steering gear to front
suspension crossmember bolts and torque to 81 ft. lbs. |
| 12. |
Install stabilizer shaft link to strut
nut and torque to 48 ft. lbs. |
| 13. |
Install tie rod to knuckle nut and
torque to 37 ft. lbs. |
| 14. |
Install front exhaust pipe assembly. |
| 15. |
Install front control arm ball joint
to knuckle nut and pin. |
| 16. |
Install engine shield to underbody
of vehicle. |
| 19. |
Remove engine support fixture. |
|

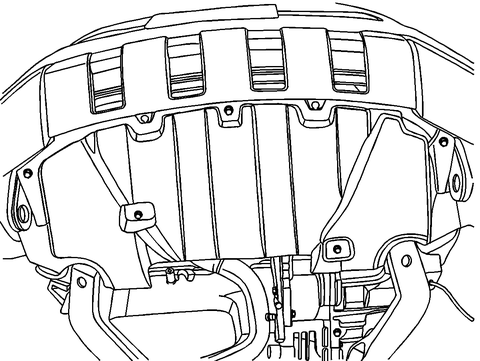

Fig.
1 Engine shield removal

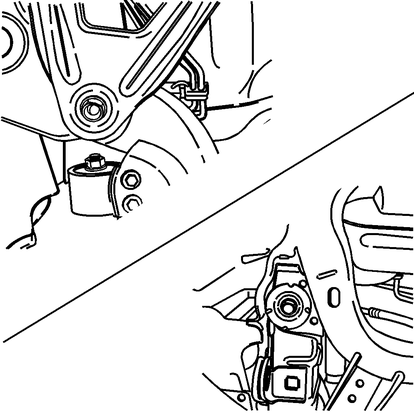

Fig.
2 Control arm ball joint to knuckle removal

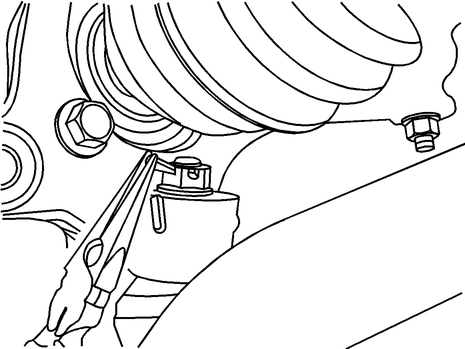

Fig.
3 Stabilizer link to strut removal
Fig.
4 Transmission rear mount bolt removal

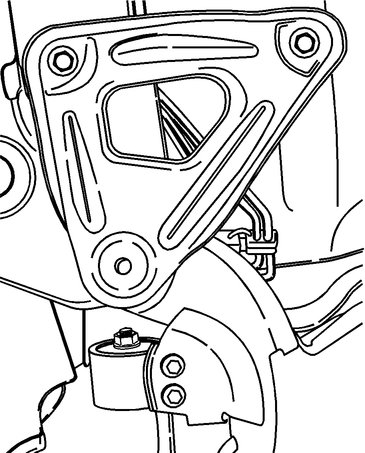

Fig.
5 Transmission front mount removal

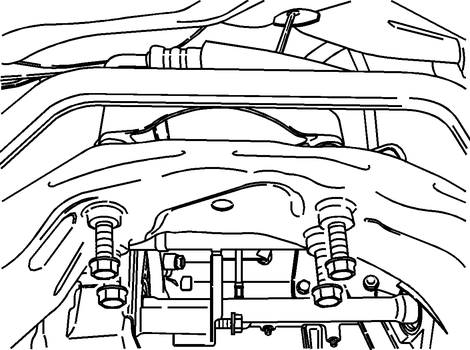

Fig.
6 Front sub-frame to body bolt removal
Fig.

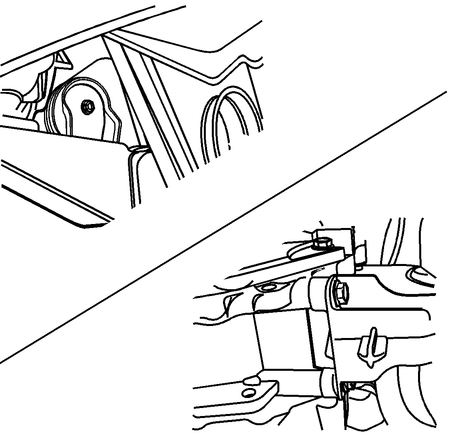

7 Front sub-frame support bracket removal

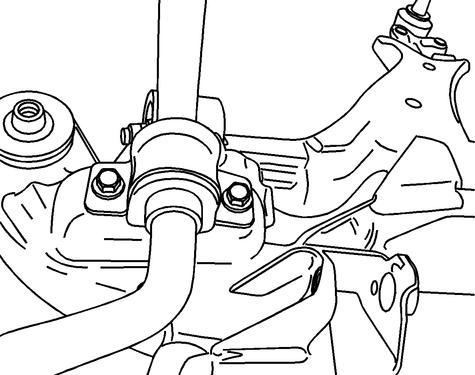

Fig.
8 Stabilizer shaft clamp removal

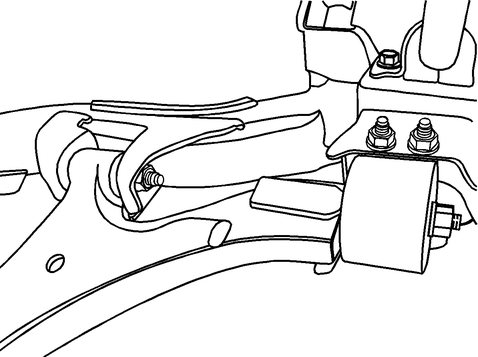

Fig.
9 Front control arm installation
