Chevrolet Captiva Service & Repair Manual: Fuel Door

Chevrolet Captiva Service & Repair Manual / Body & Frame / Fuel Door

Removal

1.	Remove two fuel door bolts, Fig. 1.

2.	Remove fuel door, Fig. 1.

Installation

Reverse procedure to install. Torque fuel door bolts to 22 inch lbs.

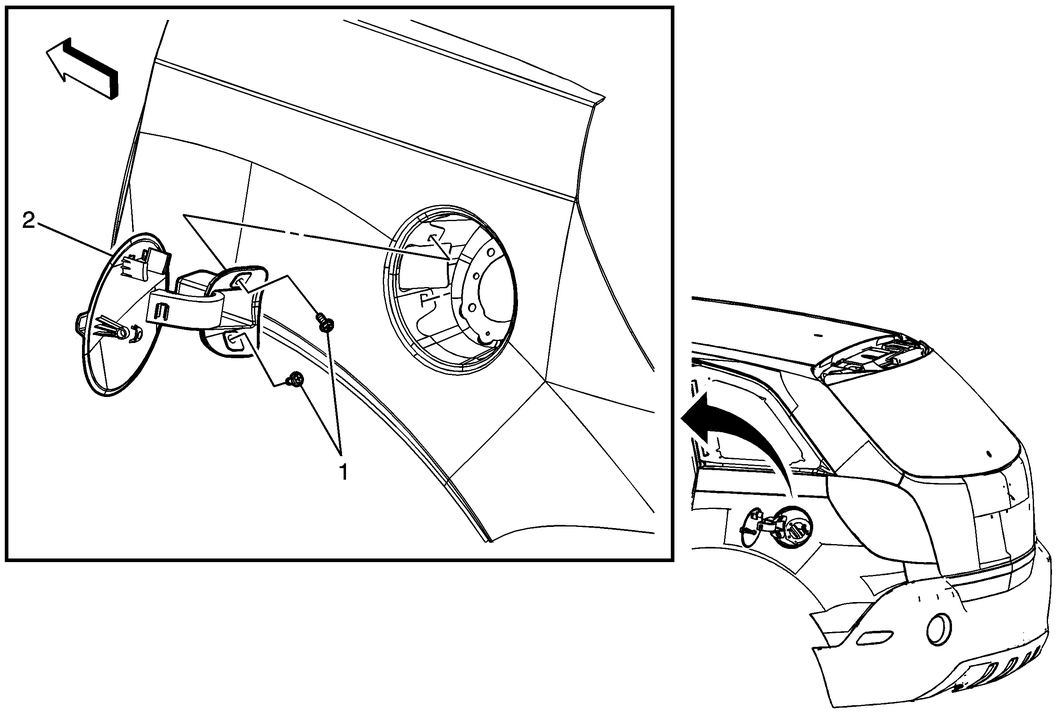

Fig. 1 Fuel door removal
