Chevrolet Captiva Service & Repair Manual: Rear Door Latch

Removal

1. Remove interior trim panel.
2. Remove three rear door latch screws, Fig. 1.
3. Remove water deflector.
4. Release inside door handle cable retainers.
5. Disconnect rear side door latch electrical connector.
6. Remove rear side door latch rods.
7. Remove rear door latch.

Installation

Reverse procedure to install. Torque latch screws to 89 inch lbs.

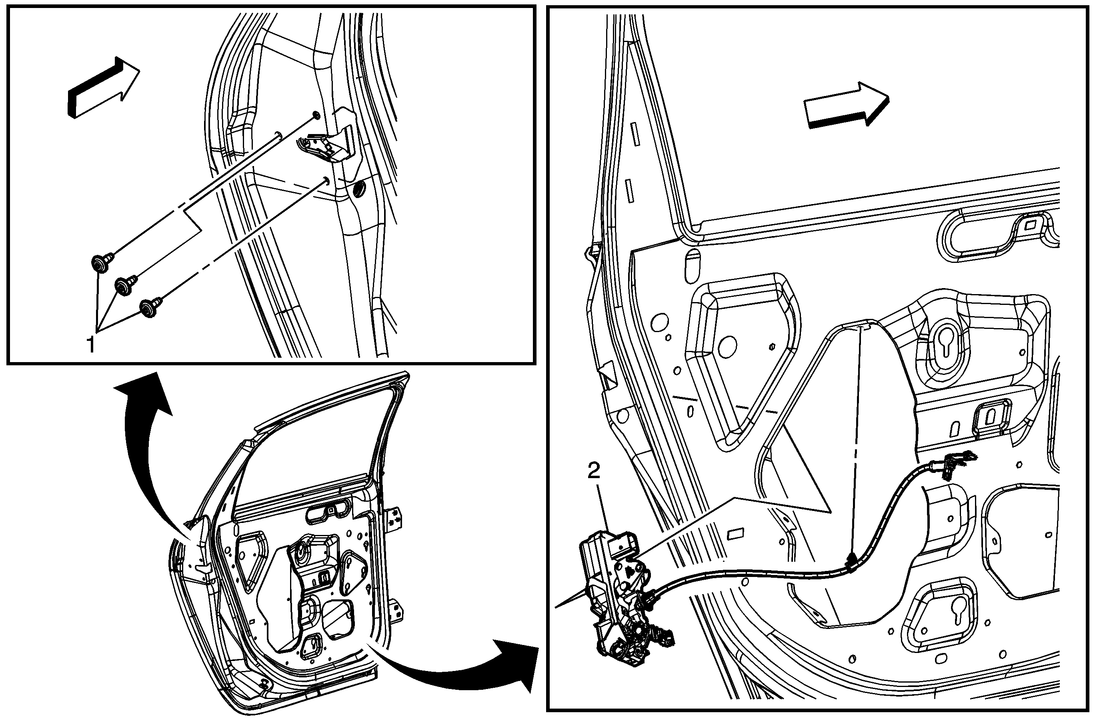

Fig. 1 Rear door latch removal
