Removal

1. Open body side doors on side that lower rocker moldings will be serviced from.
2. Remove four rocker molding screws, Fig. 1.
3. Remove 18 rocker molding retainers, Fig. 1.
4. Remove rocker molding, Fig. 1.

Installation

Reverse procedure to install. Torque rocker molding screws to 13 inch lbs.

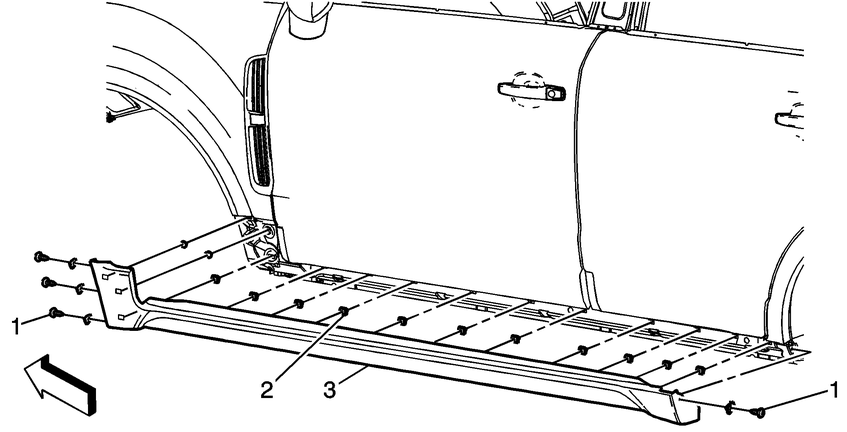

Fig. 1 Rocker molding removal
