Removal

1. Using a suitable tool, remove the brake fluid from the brake master cylinder reservoir.
2. Discard the brake fluid into an approved container.
3. Remove the underhood electrical center.
4. Without draining the coolant or removing the hoses, remove and position aside the radiator surge tank.

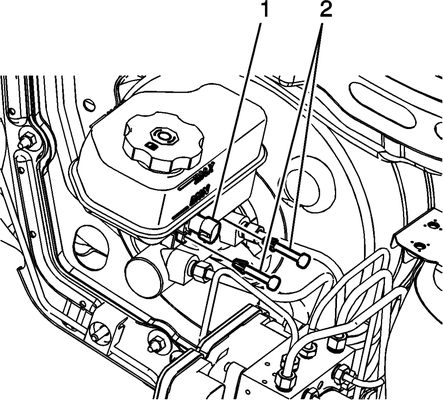

5. Disconnect the master cylinder fluid level sensor electrical connector (1), Fig. 1.
6. Remove the master cylinder reservoir retaining pins (2) by compressing the locking tabs. Do not reuse the master cylinder reservoir retaining pins, Fig. 1.
7. Discard the retaining pins.

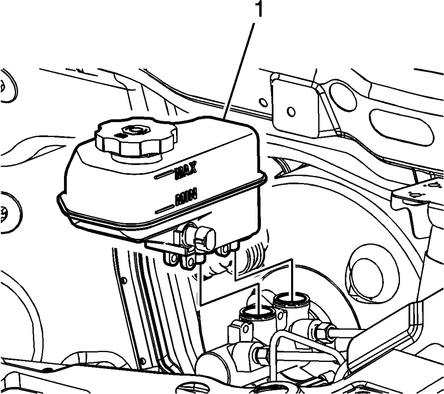

8. Carefully remove the master cylinder reservoir (1) by pulling the reservoir straight up, Fig. 2.

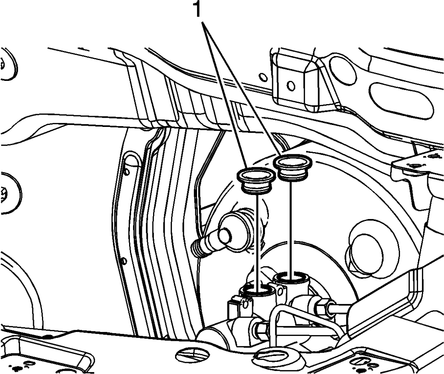

9. Remove the master cylinder reservoir seals (1), Fig. 3.

Installation

1. Lightly lubricate the master cylinder reservoir seals with GM approved brake fluid from a clean, sealed brake fluid container.
2. Install the master cylinder reservoir seals.
3. Install the master cylinder reservoir to the master cylinder.
4. Ensure the master cylinder reservoir bayonets are fully seated in the master cylinder.
5. Connect the master cylinder fluid level sensor electrical connector.
6. Install new master cylinder reservoir retaining pins.
7. Ensure the retaining pins are fully seated and the locking tabs are fully deployed.
8. Install the radiator surge tank.
9. Install the underhood electrical center.
10. Fill the master cylinder reservoir to the proper level.
11. Observe the brake pedal feel after filling the master cylinder reservoir. If the pedal feels spongy, bleed the hydraulic brake system.
