Chevrolet Captiva Service & Repair Manual: Brake Pressure Sensor R&R

Chevrolet Captiva Service & Repair Manual / Brakes / Brake Pressure Sensor R&R

A small amount of denatured alcohol may be used to ease assembly. Do not use soap.
1. With the engine OFF, apply and release the brake pedal several times until the brake pedal becomes firm to deplete the power vacuum brake booster vacuum reserve.
2. Remove the intake manifold cover.
3. Remove the power brake booster vacuum sensor (1) from the power vacuum brake booster, Fig. 1.
4. Release the spring clamp and remove the power brake booster vacuum sensor (1) from the power brake booster vacuum hose, Fig. 2.

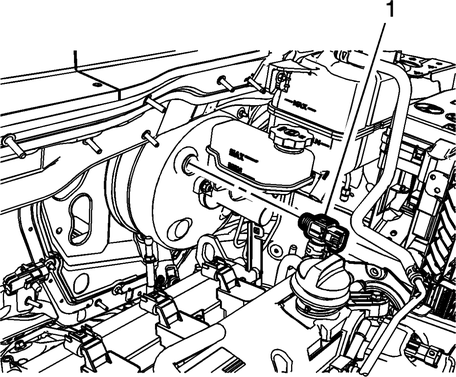

Fig. 1

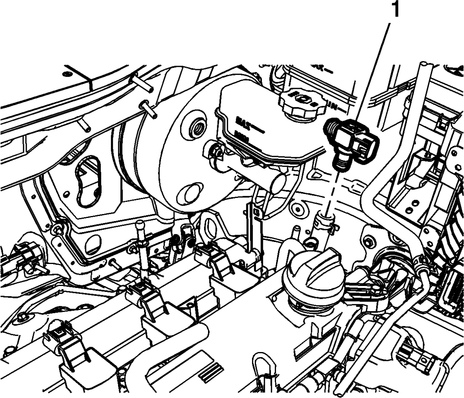

Fig. 2
