Chevrolet Captiva Service & Repair Manual: Wheel Speed Sensor R&R

Front

1. Raise and support the vehicle.
2. Remove the tire and wheel.
3. Remove the wheel bearing and hub assembly.
4. Release the electrical connector from the bracket. Disconnect wheel speed sensor electrical connector.
5. Remove wheel speed sensor bolt, Fig. 1.
6. Remove wheel speed sensor, Fig. 1.
7. Reverse procedure to install, noting following:
  a. Torque wheel speed sensor bolt to 71 inch lbs.
  b. Route the wheel speed sensor electrical harness through the splash shield.

Rear

1. Raise and support the vehicle.
2. Remove the tire and wheel.
3. Remove the park brake shoes.
4. Disconnect wheel speed sensor electrical connector.
5. Remove wheel speed sensor bolt, Fig. 2.
6. Release the wheel speed sensor electrical harness grommet from the backing plate, Fig. 2.
7. Route the wheel speed sensor electrical harness through the backing plate, Fig. 2.
8. Reverse procedure to install. Torque rear wheel speed sensor bolt to 71 inch lbs.

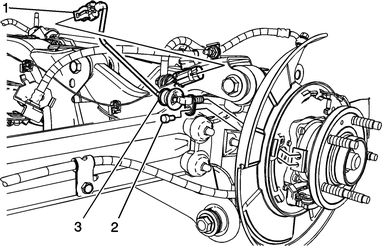

Fig. 1

Fig. 2
