Chevrolet Captiva Service & Repair Manual: Yaw Sensor R&R

1. Disable the SIR system.
2. Remove front floor rear console.
3. Remove the console bracket and bolts.
4. Position the wire harness assembly out of the way.
5. Disconnect any electrical connectors.

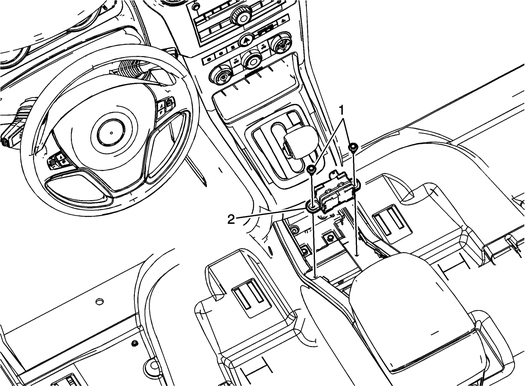

6. Remove electronic brake control vehicle yaw sensor assembly, Fig. 1.
7. Reverse procedure to install. Torque sensor bolts to 71 inch lbs.

Fig. 1
