Chevrolet Captiva Service & Repair Manual: Alternator, Replace
| Refer to Fig. 1
for alternator replacement. |
| 1. |
Disconnect battery ground cable. |
| 2. |
Remove drive belt, as follows: |
| |
a. |
Remove air cleaner assembly. |
| |
b. |
Remove righthand engine splash shield. |
| |
c. |
Rotate drive belt tensioner to release
drive belt tension, using a suitable tension reliever tool. |
| |
d. |
Remove drive belt from pulleys and
tensioner, Fig. 2. |
| 3. |
Disconnect alternator electrical connector. |
| 4. |
Remove alternator battery positive
nut (1), Fig. 1. |
| 5. |
Remove alternator mounting bolts (2),
Fig. 1. |
| 6. |
Remove alternator (3), Fig.
1. |
| 7. |
Reverse procedure to install, note
following: |
| |
a. |
Torque alternator battery positive
nut to 15 ft. lbs. |
| |
b. |
Torque alternator mounting bolts
to 16 ft. lbs. |
|

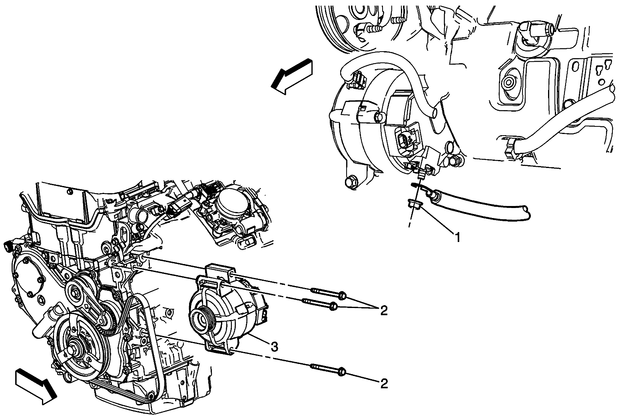

Fig.
1 Alternator replacement
Fig.
2 Drive belt removal
