Chevrolet Captiva Service & Repair Manual: Door Latch

1. Remove door trim panel as outlined under "Door Trim Panel."
2. Remove door water deflector.
3. Release interior door handle cable retainers from door.
4. Remove door latch screws, Figs. 1 and 2.
5. Disconnect door latch electrical connector.
6. Remove door latch assembly.
7. Reverse procedure to install. Torque door latch screws and liftgate latch bolts to 89 inch lbs.

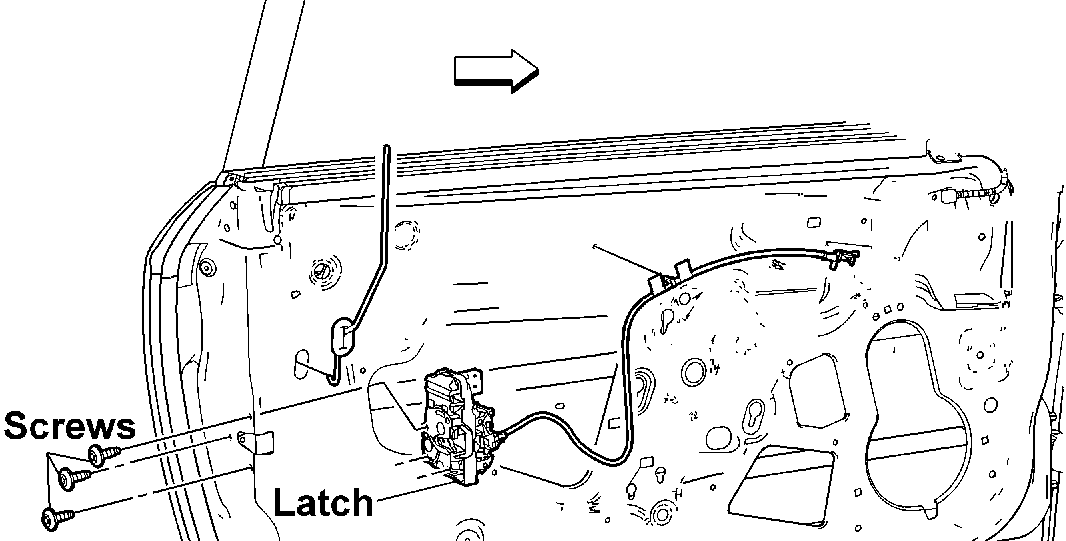

Fig. 1 Front door latch replacement. Captiva Sport

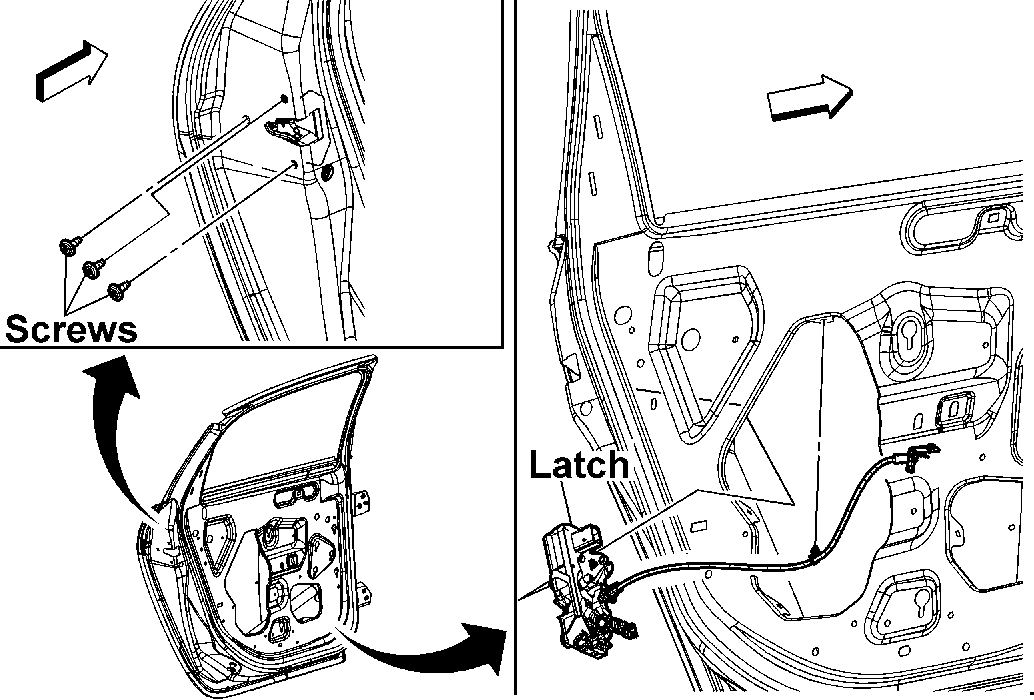

Fig. 2 Rear door latch replacement. Captiva Sport
