Chevrolet Captiva Service & Repair Manual: Door Lock Actuator R&R

Front

1. Remove front door trim panel.
2. Remove water deflector.
3. Release front inside door handle cable retainers from door.
4. Remove door latch (2) retaining screws (1), Fig. 1.
5. Disconnect door latch electrical connector.
6. Disconnect door latch rods.
7. Remove front door latch.
8. Reverse procedure to install, note following:
  a. Transfer front door latch rods.
  b. Torque door latch retaining screws to 89 inch lbs.

Rear

1. Remove rear door trim panel.
2. Remove water deflector.
3. Release inside door handle cable retainers from door.
4. Remove door latch (2) retaining screws (1), Fig. 2.
5. Disconnect door latch electrical connector.
6. Disconnect door latch rods.
7. Remove rear door latch.
8. Reverse procedure to install, note following:
  a. Transfer rear door latch rods.
  b. Torque door latch retaining screws to 89 inch lbs.

Liftgate

1. Remove liftgate trim panel.
2. Remove liftgate latch (2) retaining screws (1), Fig. 3.
3. Disconnect liftgate latch electrical connector.
4. Remove liftgate latch.
5. Reverse procedure to install. Torque door latch retaining screws to 89 inch lbs.

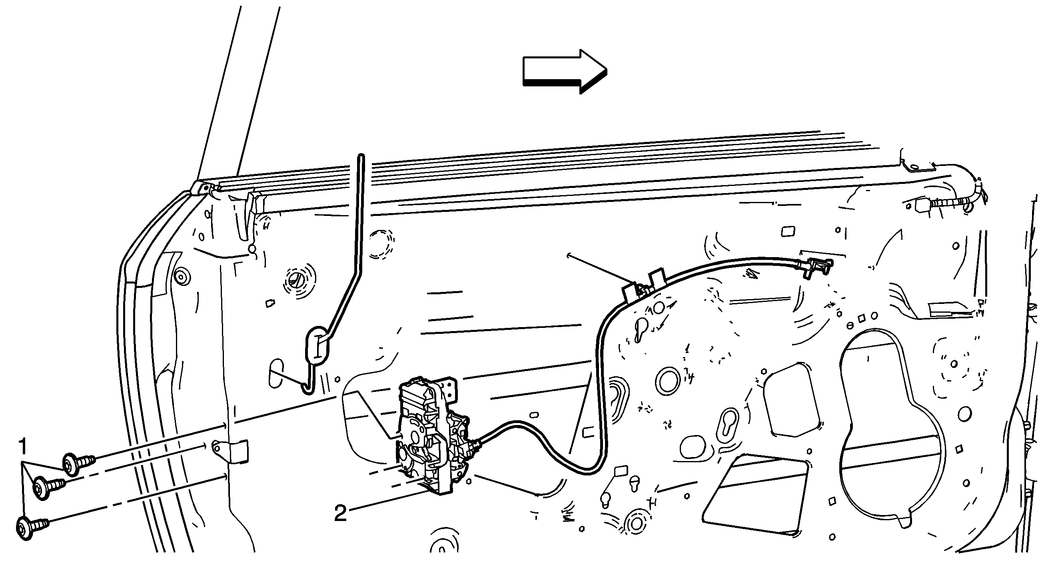

Fig. 1 Door latch removal. Front

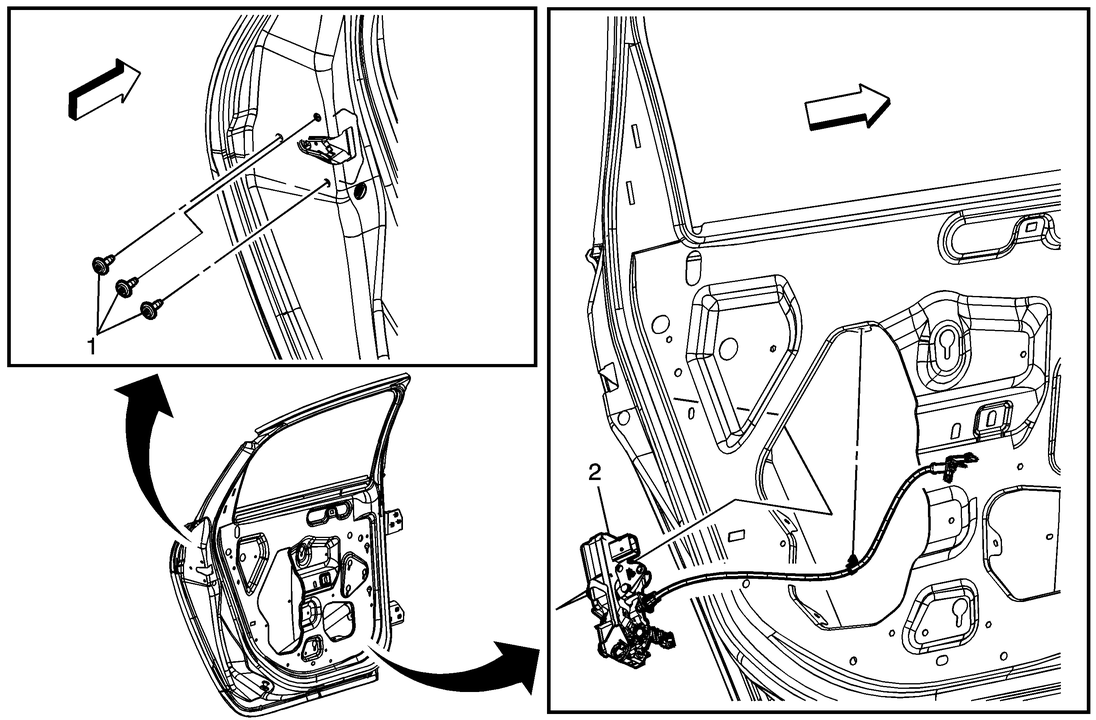

Fig. 2 Door latch removal. Rear

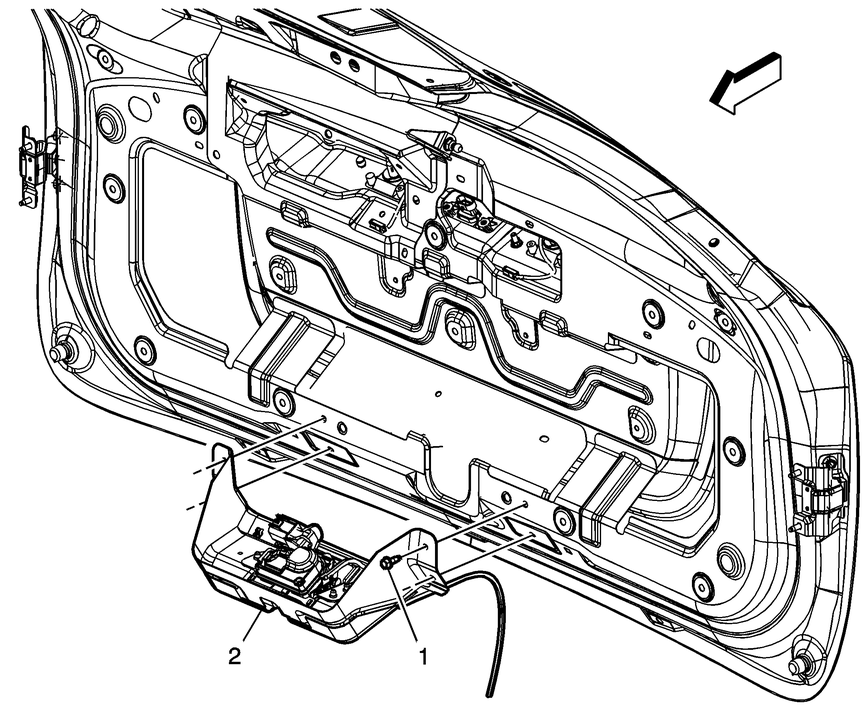

Fig. 3 Liftgate latch removal
