Chevrolet Captiva Service & Repair Manual: Door Trim Panel
Front
| 1. |
Remove three front door trim panel
bolts, Fig. 1. |
| 2. |
Disengage door lock cable. |
| 3. |
Disconnect trim panel electrical connector. |
| 4. |
Release front door trim panel retainers. |
| 5. |
Remove front door trim panel assembly. |
| 6. |
Reverse procedure to install, noting
following: |
| |
a. |
Torque door trim panel bolts
to 22 inch lbs. |
| |
b. |
Torque door trim pull handle
bolts to 22 inch lbs. |
|
Rear
| 1. |
Pull door upper rear trim panel away
from rear door. |
| 2. |
Remove rear door trim panel screws,
Fig. 2. |
| 3. |
Remove rear door trim panel retainers. |
| 4. |
Disengage door lock cable. |
| 5. |
Disconnect trim panel electrical connector. |
| 6. |
Remove rear door trim panel assembly. |
| 7. |
Reverse procedure to install, noting
following: |
| |
a. |
Torque door trim panel bolts
to 22 inch lbs. |
| |
b. |
Torque door trim pull handle
bolts to 22 inch lbs. |
|
Liftgate
| 1. |
Release liftgate upper trim finish
panel from retainer clips using a suitable trim tool. |
| 2. |
Release liftgate righthand trim finish
panel from retainer clips using a suitable trim tool. |
| 3. |
Release liftgate lefthand trim finish
panel from retainer clips using a suitable trim tool. |
| 4. |
Remove liftgate window garnish molding. |
| 5. |
Remove liftgate interior pull handle
screw, Fig. 3. |
| 6. |
Remove liftgate trim finish panel pull
handle. |
| 7. |
Remove liftgate trim finish panel screws. |
| 8. |
Release liftgate trim finish panel
retainers. |
| 9. |
Remove liftgate trim finish panel. |
| 10. |
Reverse procedure to install. Torque
liftgate trim panel screws to 22 inch lbs. |
|
Fig.

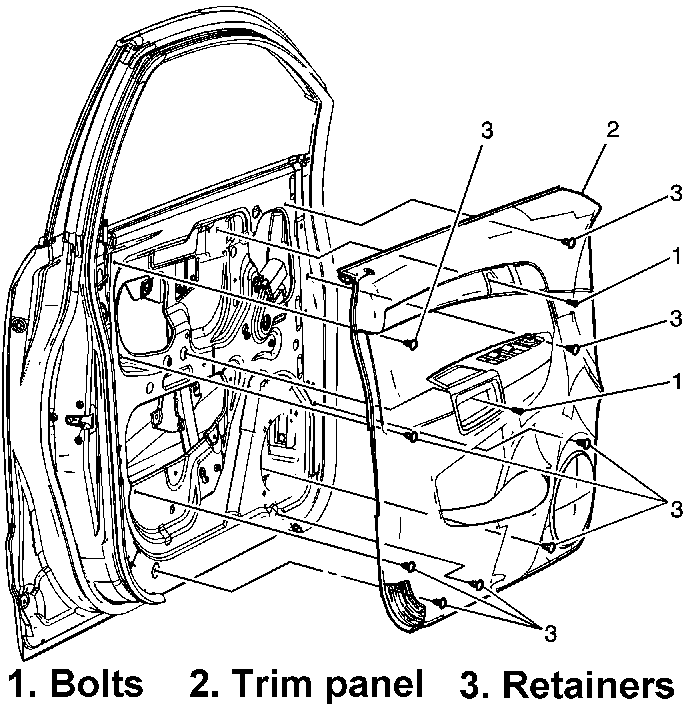

1 Front door trim panel replacement. Captiva Sport
Fig.

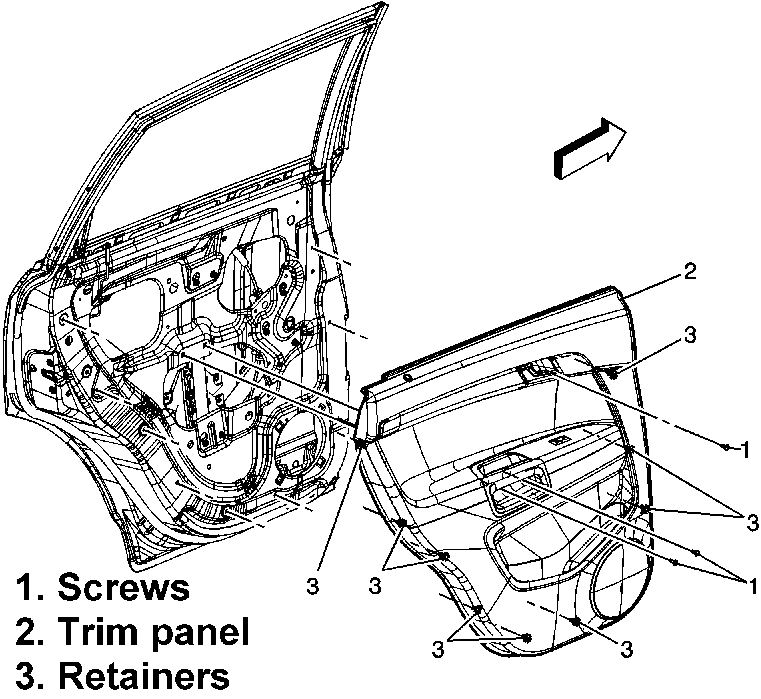

2 Rear door trim panel replacement. Captiva Sport
Fig.

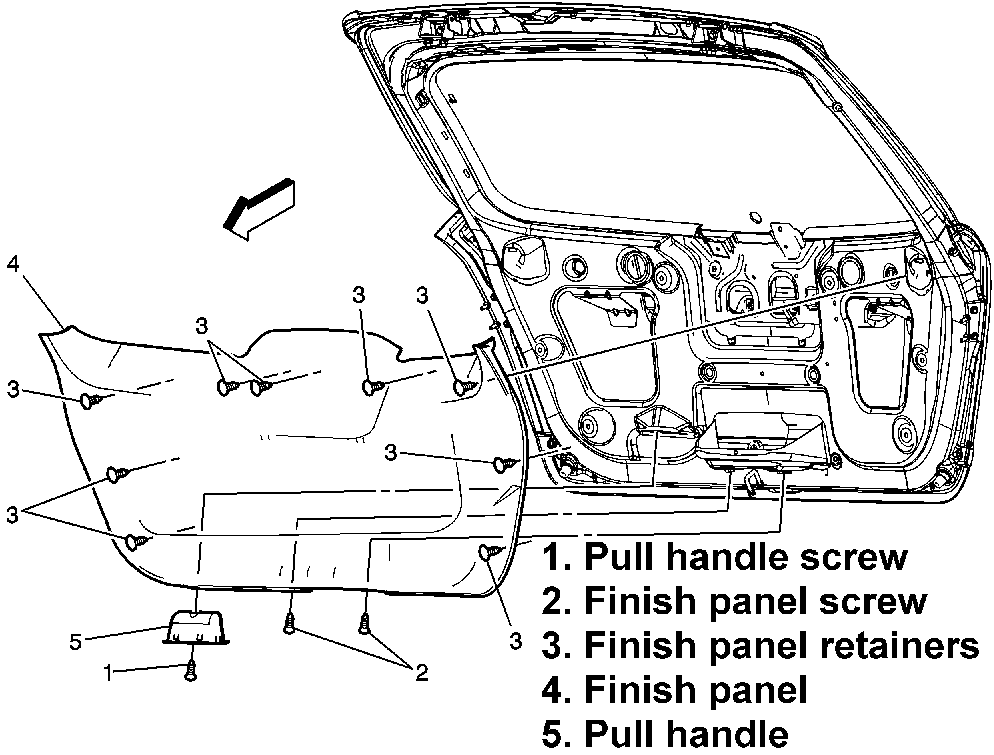

3 Liftgate trim panel replacement. Captiva Sport
Refer to Fig. 1
when performing following procedures.
1.
Remove front door trim panel as outlined
under "Door Trim Panel."
...
Front
1.
Place window in full down position.
2.
Remove front door trim panel as outlined
under "Door Trim Panel."
...
