Chevrolet Captiva Service & Repair Manual: Door Window

Front

1. Place window in full down position.
2. Remove front door trim panel as outlined under "Door Trim Panel."
3. Remove front door water deflector.
4. Lower window to center of interior door panel, and align bolts with access.
5. Remove window guide bolts from window regulator, Fig. 1.
6. Slide window down and out of primary glass channels.
7. Remove window by tilting outboard and pulling window out of door through door belt opening.
8. Remove front door window.
9. Reverse procedure to install. Torque front door window guide bolts to 89 inch lbs.

Rear

1. Place window in fully down position.
2. Remove rear door trim panel as outlined under "Door Trim Panel."
3. Remove rear door water deflector.
4. Lower window to align bolts with access holes in interior door panel.
5. Remove window guide bolts, Fig. 2.
6. Remove front portion of rear door window channel weather-strip; this will allow window to slide forward.
7. Loosen front edge of primary weather-strip to expose screws.
8. Remove rear door front frame applique screws.
9. Remove rear door front applique.
10. In order to remove window out of frame, carefully grasp and tilt window and guide window up and forward.
11. Remove rear door window.
12. Reverse procedure to install. Torque rear door window guide bolts to 89 inch lbs.

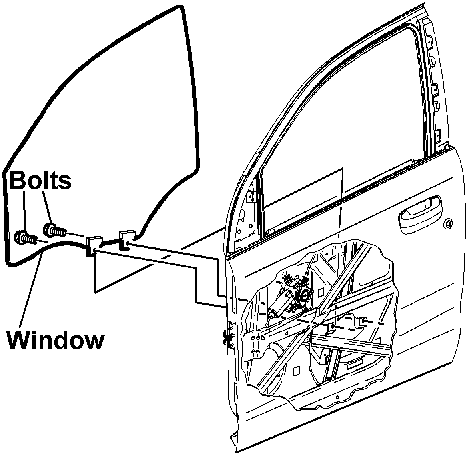

Fig. 1 Front door window replacement. Captiva Sport

Fig. 2 Rear door window replacement. Captiva Sport
