Chevrolet Captiva Service & Repair Manual: Exterior Rearview Mirrors
| 1. |
Remove front door trim panel as outlined
under "Door Trim Panel." |
| 2. |
Remove exterior rearview mirror cover
using a suitable tool, Fig. 1. |
| 3. |
Remove three exterior rearview mirror
bolts. |
| 4. |
Disconnect exterior rearview mirror
electrical connector. |
| 5. |
Remove exterior rearview mirror. |
| 6. |
Reverse procedure to install. Torque
exterior rearview mirror bolts to 89 inch lbs. |
|

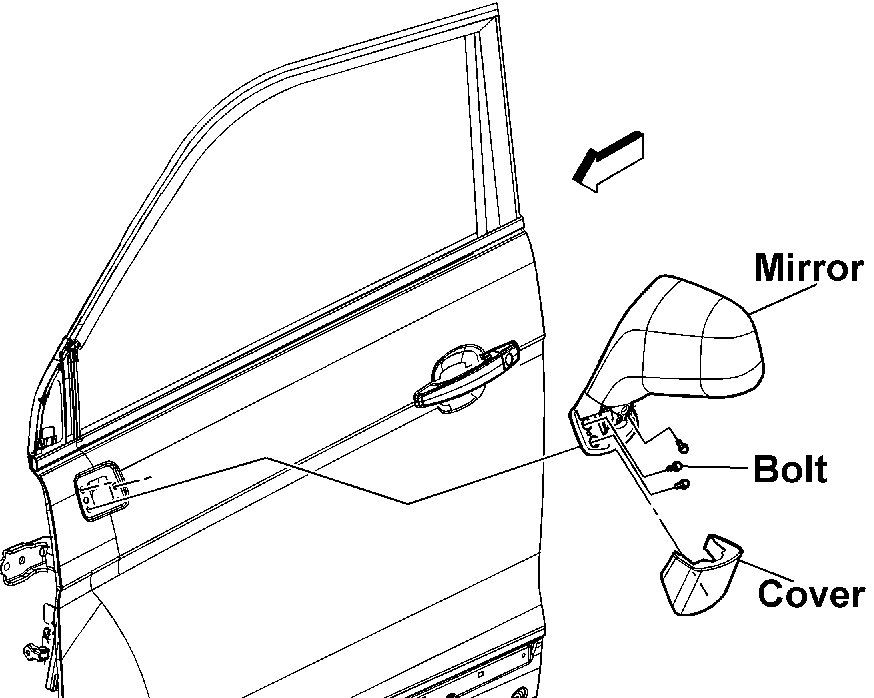

Fig.
1 Exterior rearview mirror replacement. Captiva Sport
