Chevrolet Captiva Service & Repair Manual: Headliner

Refer to Fig. 1 when performing following procedures.
1. Remove windshield garnish molding.
2. Remove sunshade anchors, sunshade assembly and disconnect electrical connector.
3. Remove front and rear assist handle, then roof rail front assist handle assembly.
4. Remove overhead console as outlined under "Overhead Console."
5. Remove center pillar lower garnish molding and center pillar upper trim panel.
6. Remove rear quarter lower trim panel and rear quarter upper trim panel as outlined under "Rear Quarter Trim Panel."
7. Remove rear overhead console as outlined under "Overhead Console."
8. Remove three push retainers located at rear edge of headliner.
9. Remove headliner trim panel assembly and disconnect electrical connectors.
10. Reverse procedure to install, noting following:
  a. Torque sunshade anchor screws to 27 inch lbs.
  b. Torque roof rail front assist handle screws to 53 inch lbs.

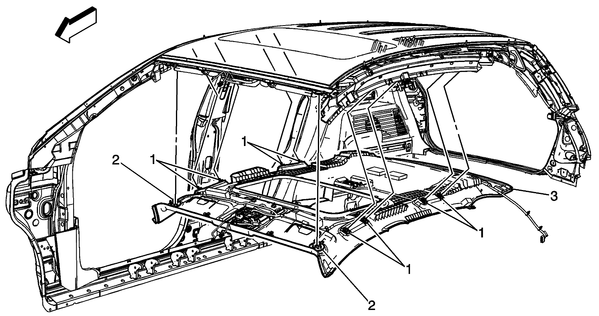

Fig. 1 Exploded view of headliner. Captiva Sport
