Chevrolet Captiva Service & Repair Manual: Overhead Console


1. Release tabs and gently pull down to remove overhead console.
2. Remove overhead console assembly and disconnect electrical connectors.
3. Reverse procedure to install.


1. Ensure that all washers on mounting screws are accounted for. If any washers are off screw and loose, discard to prevent rattle. Washers were required only for assembly plant installation, and can be used if still on screw or they can be discarded, Fig. 1.
2. Remove video display assembly and disconnect electrical connector.
3. Remove overhead console assembly and disconnect electrical connectors.
4. Reverse procedure to install. Torque video display assembly screws to 22 inch lbs.

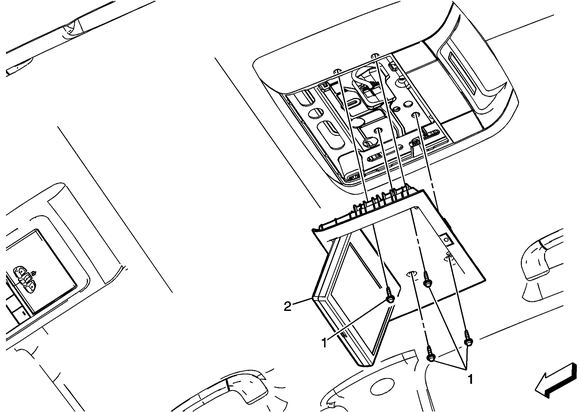

Fig. 1 Rear video display removal. Captiva Sport
