Chevrolet Captiva Service & Repair Manual: Rear Quarter Trim Panel
Lower
| 1. |
Remove cargo accessory shelves. |
| 2. |
Remove rear seat belt anchor bolt. |
| 3. |
Lift storage compartment lid. |
| 4. |
Remove foam over spare tire. |
| 5. |
Release liftgate door sill plate clips
using a suitable flat-bladed plastic trim tool. |
| 6. |
Remove liftgate door sill plate. |
| 7. |
Rotate rear seats to forward position. |
| 8. |
Remove rear quarter lower trim panel
retaining screws, Fig. 1. |
| 9. |
Remove rear quarter lower trim panel
retainers. |
| 10. |
Disconnect rear quarter lower trim
panel electrical connectors. |
| 11. |
Remove rear quarter lower trim panel
assembly. |
| 12. |
Reverse procedure to install. Torque
rear quarter lower trim panel retaining screws to 53 inch lbs. |
|
Upper
| 1. |
Remove rear quarter lower trim panel
as outlined under "Rear Quarter Trim Panel, Lower." |
| 2. |
Loosen rear compartment opening weather-strip. |
| 3. |
Route seat belt through trim panel. |
| 4. |
Release rear quarter upper trim panel
clips, Fig. 2. |
| 5. |
Remove rear quarter upper trim panel
assembly. |
| 6. |
Reverse procedure to install. |
|

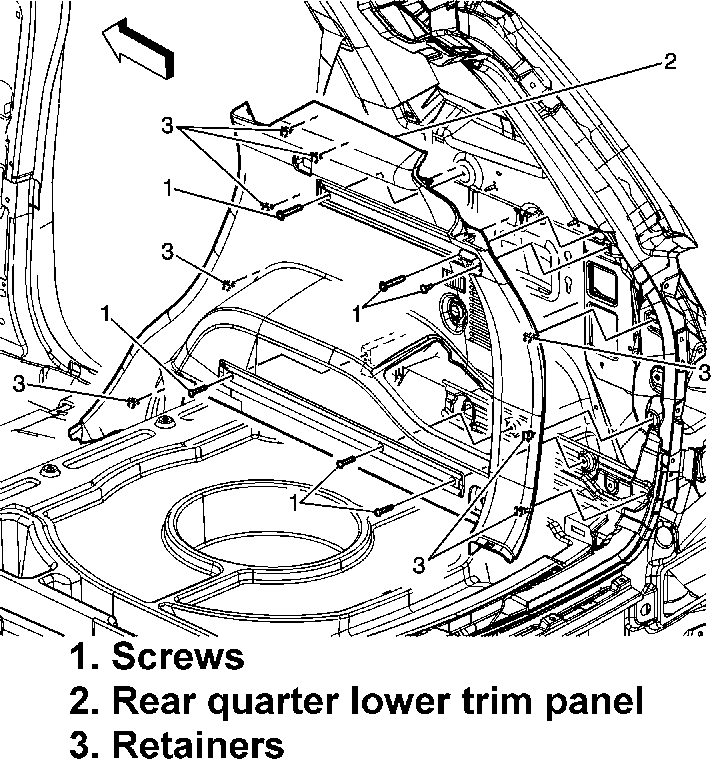

Fig.
1 Lower rear quarter trim panel replacement. Captiva Sport

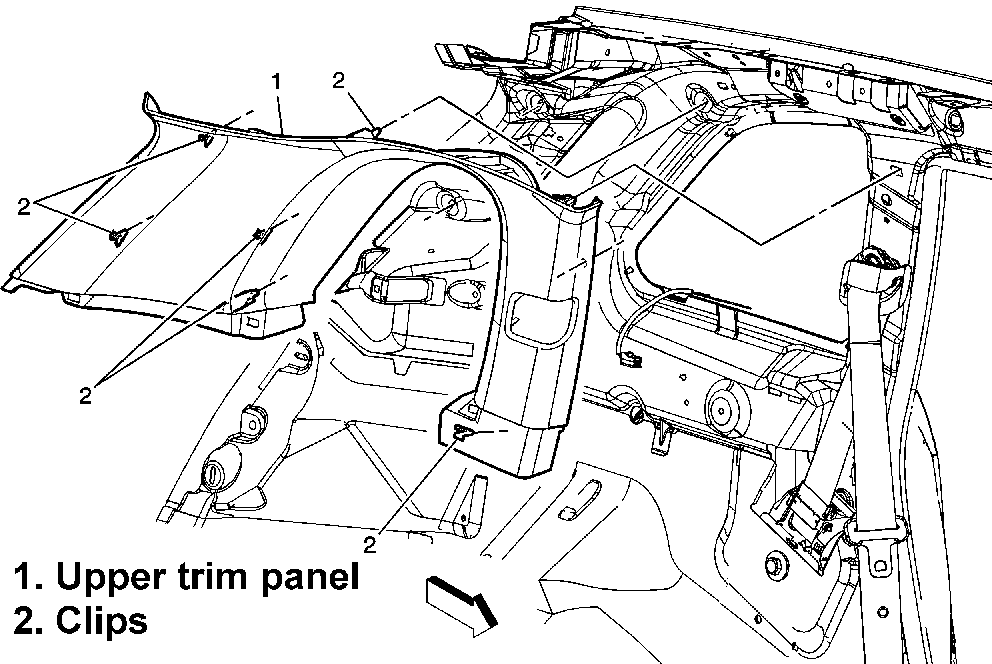

Fig.
2 Upper rear quarter trim panel replacement. Captiva Sport
