Chevrolet Captiva Service & Repair Manual: Window Regulator

Front

1. Remove front door trim panel as outlined under "Door Trim Panel."
2. Remove front door water deflector.
3. Remove front door window regulator nuts, Fig. 1.
4. Disconnect electrical connector from motor.
5. Remove front door window, as outlined under "Door Window."
6. Remove front door window regulator and window regulator motor. Window regulator motor is not serviced separately.
7. Reverse procedure to install. Torque front door window regulator nuts to 71 inch lbs.

Rear

1. Remove rear door trim panel as outlined under "Door Trim Panel."
2. Remove rear door water deflector.
3. Remove rear door window regulator nuts, Fig. 2.
4. Disconnect electrical connector from window regulator motor.
5. Remove rear door window, as outlined under "Door Window."
6. Remove rear door window regulator and window regulator motor. Window regulator motor is not serviced separately.
7. Reverse procedure to install. Torque rear door window regulator nuts to 71 inch lbs.

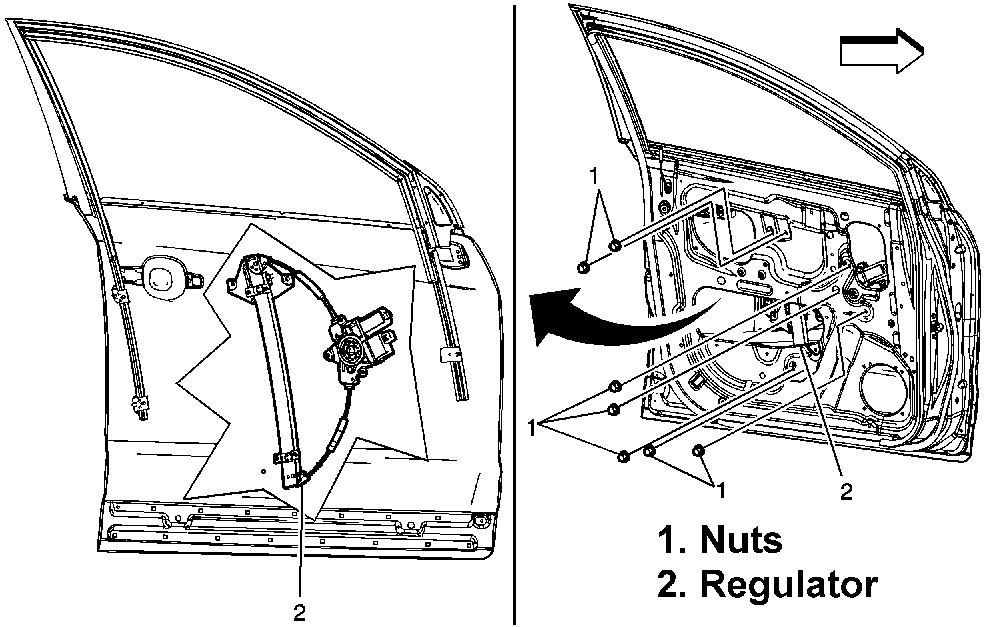

Fig. 1 Front door window regulator replacement. Captiva Sport

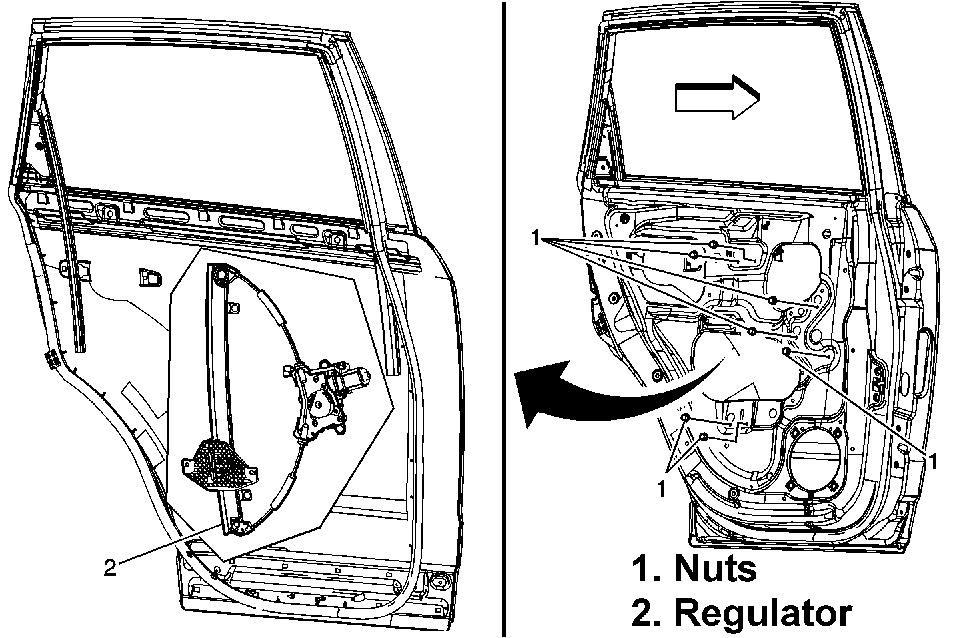

Fig. 2 Rear door window regulator replacement. Captiva Sport
