Chevrolet Captiva Service & Repair Manual: Drive Belt Idler Pulley R&R

1. Remove drive belt.
2. Remove drive belt idler pulley bolt, Fig. 1.
3. Remove drive belt idler pulley, Fig. 1.
4. Reverse procedure to install. Torque drive belt idler pulley bolt to 16 ft. lbs.

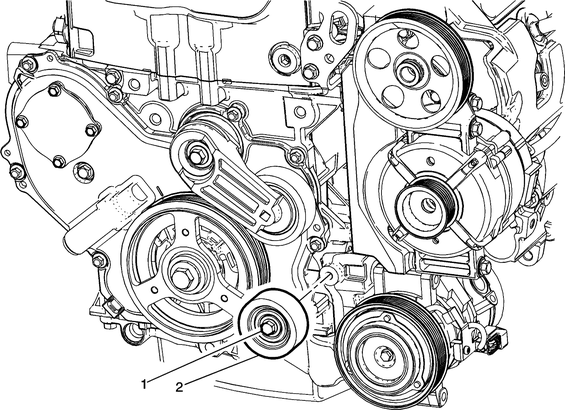

Fig. 1 Drive belt idler pulley removal
