Chevrolet Captiva Owners Manual: Instrument Panel

Instrument Panel Overview

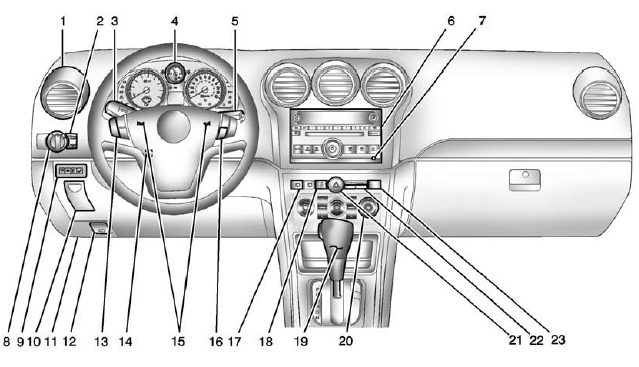

Instrument Panel Overview

  1. Air Vents on page 8-9.
  2. Instrument Panel Illumination Control on page 6-4.
  3. Turn Signal Lever. See Turn and Lane-Change Signals on page 6-3.
  4. Instrument Cluster on page 5-9.
  5. Windshield Wiper/Washer on page 5-3.
  6. AM-FM Radio on page 7-5.
  7. Auxiliary Input Jack (If Equipped). See Auxiliary Devices on page 7-20.
  8. Fog Lamps on page 6-4.

    Exterior Lamp Controls on page 6-1.

  9. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) on page 5-24.
  10. Instrument Panel Storage on page 4-1.
  11. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp on page 5-14.
  12. Hood Release. See Hood on page 10-3.
  13. Cruise Control on page 9-30.
  14. Steering Wheel Adjustment on page 5-2.
  15. Horn on page 5-3.
  16. Steering Wheel Controls on page 5-2 (If Equipped).
  17. Rear Window Wiper/Washer on page 5-4.
  18. Traction Control/Electronic Stability Control on page 9-28.
  19. Shift Lever. See Automatic Transmission on page 9-21.
  20. Climate Control Systems on page 8-1 (If Equipped).

    Automatic Climate Control System on

  21. Hazard Warning Flashers on page 6-3.
  22. Passenger Airbag Status Indicator. See Passenger Sensing System (United States) on page 3-24.
  23. Passenger Safety Belt Reminder. See Safety Belt Reminders on page 5-11.
