Chevrolet Captiva Service & Repair Manual: Drive Belt R&R

1. Remove air cleaner assembly.
2. Remove righthand engine splash shield.
3. Rotate drive belt tensioner, using a suitable tool, Fig. 1.
4. Remove drive belt from pulleys and tensioner, Fig. 1.
5. Clean and inspect drive belt surfaces of all pulleys.
6. Inspect drive belt for correct alignment.
7. Reverse procedure to install.

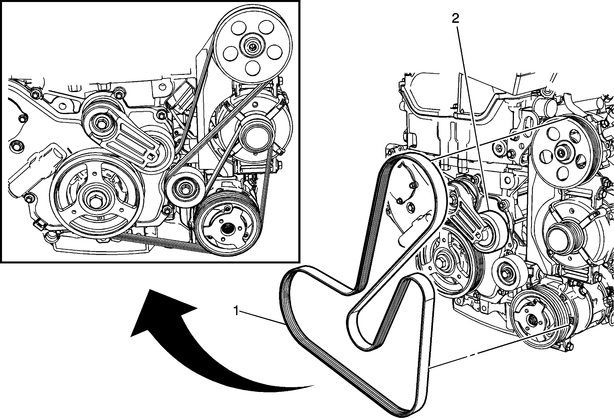

Fig. 1 Drive belt removal
