Chevrolet Captiva Service & Repair Manual: Drive Belt Tensioner R&R

1.	Remove drive belt.

2.	Remove drive belt tensioner bolt, Fig. 1.

3.	Remove drive belt tensioner, Fig. 1.

4.	Reverse procedure to install. Torque drive belt tensioner bolt to 33 ft. lbs.

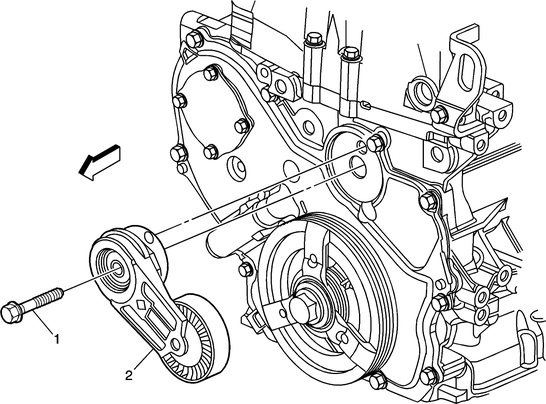

Fig. 1 Drive belt tensioner removal
