Chevrolet Captiva Service & Repair Manual: Stabilizer Bar Bushing R&R

Front

1. Remove front tire and wheel assemblies.
2. Remove front stabilizer shaft insulator clamp bolt, Fig. 1.
3. Remove front stabilizer shaft insulator clamp, Fig. 1.
4. Remove front stabilizer shaft, Fig. 1.
5. Reverse procedure to install. Torque front stabilizer shaft insulator clamp bolts to 37 ft. lbs.

Rear

1. Raise and support vehicle.
2. Remove stabilizer shaft insulator bolts, Fig. 2.
3. Lower rear suspension support. Lower rear suspension support enough to remove stabilizer shaft clamp bolt.
4. Remove stabilizer shaft insulator clamps, Fig. 2.
5. Remove stabilizer shaft insulators, Fig. 2.
6. Reverse procedure to install. Torque stabilizer shaft insulator clamp bolts to 52 ft. lbs.

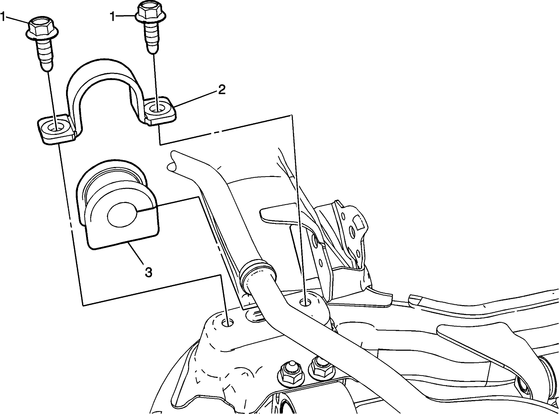

Fig. 1

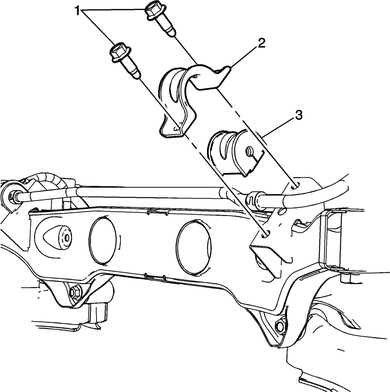

Fig. 2
