Chevrolet Captiva Service & Repair Manual: Trailing Arm R&R

1. Raise and support vehicle.
2. Remove tire and wheel.
3. Remove park brake cable bolt from trailing arm and from frame.
4. Remove trailing arm bracket to body bolts, Fig. 1.
5. Remove trailing arm bushing to bracket nut and bolt, Fig. 2.
6. Remove trailing arm to knuckle bolts (1), Fig. 2.
7. Remove trailing arm.
8. Reverse procedure to install, noting following:
  a. Apply an approved threadlocker on trailing arm bolts.
  b. Install trailing arm to knuckle bolts and torque to 44 ft. lbs. plus 30°.
  c. Torque trailing arm bushing to bracket nut and bolt to 118 ft. lbs.

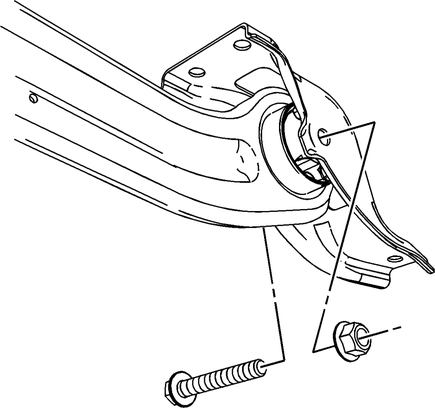

Fig. 1

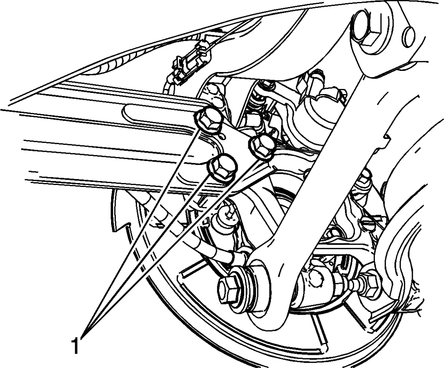

Fig. 2
