Chevrolet Captiva Service & Repair Manual: Component Replacement

Tire Pressure Indicator Sensor Replacement

Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Do not use paints, lubricants, or corrosion inhibitors on fasteners, or fastener joint surfaces, unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems. When using fasteners that are threaded directly into plastic, use extreme care not to strip the mating plastic part(s). Use hand tools only, and do not use any kind of impact or power tools. Fastener should be hand tightened, fully seated, and not stripped.
1. Remove tire and wheel.
2. Remove valve stem cap (1), valve core (2), Valve nut (3) and grommet seal (4), Fig. 1.
3. Remove tire pressure indicator sensor (5), Fig. 1.
4. Reverse procedure to install, noting the following:
  a. Torque tire pressure indicator sensor nut to 40 inch lbs.
  b. Perform tire pressure indicator sensor relearn procedure.

Low Tire Pressure Indicator Module Replacement

Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Do not use paints, lubricants, or corrosion inhibitors on fasteners, or fastener joint surfaces, unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems. When using fasteners that are threaded directly into plastic, use extreme care not to strip the mating plastic part(s). Use hand tools only, and do not use any kind of impact or power tools. Fastener should be hand tightened, fully seated, and not stripped.
1. Remove instrument panel storage compartment.
2. Disconnect electrical wiring harness connector from low tire pressure indicator module (1), Fig. 2.
3. Remove low tire pressure indicator module fastener (2) and remove module, Fig. 2.
4. Reverse procedure to install.
5. Perform tire pressure indicator sensor relearn procedure.

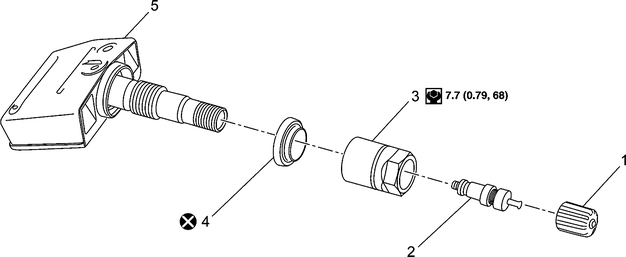

Fig. 1 Tire pressure indicator sensor replacement

Fig. 2 Tire pressure indicator module replacement

    Component Locations
    Refer to Fig. 1 for component locations. Fig. 1 TPMS sensor location ...

    Description
    The TPMS (Tire Pressure Monitor System) warns the driver when a significant loss or gain of tire pressure occurs in any of the four tires and allows the driver to display the individual ...
